© Skarke GmbHScrew-in thread
thread - length
Connecting thread
KV
Long valve body
seal
Opening pressure
Color identification ring
M12
-
M26x1,5
-
No
-
-
-
© Skarke GmbH
© Skarke GmbH
© Skarke GmbHProduct specifications
All data at a glance

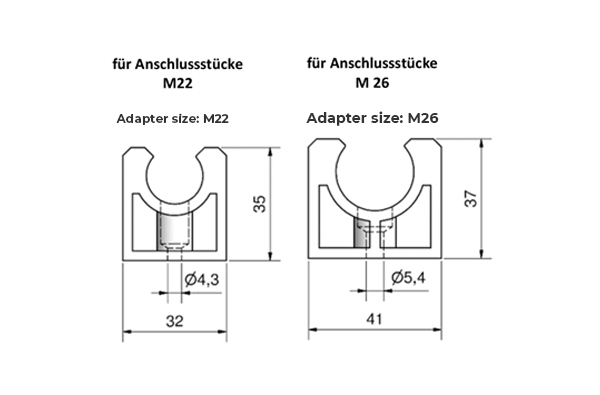

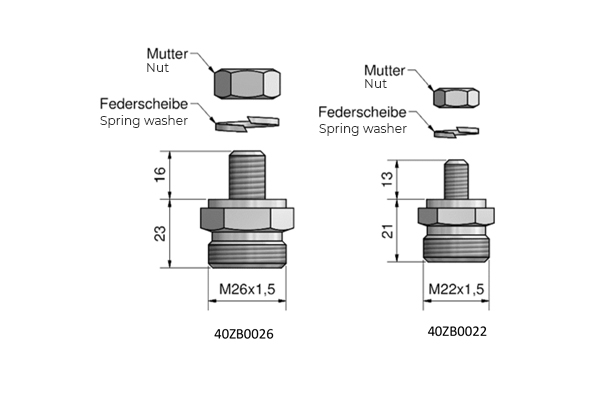

Adapter retention stud
| Fixing thread: |
M 12 (for M 26 adapter) |
| Stud material: | Galvanised steel passivated (chrome VI free) |
| Clip material: | HDPE (polyethylene) |
| Temperature range: | ‐20°C to +80°C |
| Weitere Infos: |
|
