© Skarke GmbHScrew-in thread
thread - length
Connecting thread
KV
Long valve body
seal
Opening pressure
Color identification ring
SA 18mm
-
M26x1,5
SW 30
No
-
-
-
© Skarke GmbH
© Skarke GmbHProduct specifications
All data at a glance
Due to their special construction Skarke oil service valves have a very high flow performance, temperature resistance and pressure tolerance.
| Application examples: |
|
| Valve material: | Steel / brass / valve head seal:‐ FKM (Viton) |
| Temperature range: | ‐30°C to +200°C |
| Pressure tolerance: | On request (the pressure resistance depends on the valve dimensions). Approval for unpressurized drain only. |
| Rate of flow: | The rate of flow is dependent on the dimensions of the valve and the temperature as well as the pressure and the viscosity of the liquid flowing through it. |
| Example: | |
| Engine Oil: | 10 W/40 |
| Oil Temperature: | ~ 30° C |
| Rate of Flow: | ~ 1,6 litre/min.* * Rate of flow without influence of any mechanical pressure |
| Valve body: | Stainless steel VA 1.4305 |
| Valve plate: | Brass with O‐ring in FKM (Viton) |
| Protection cap: | Thread M26x1.5 in VA 1.4305. Supplied with stainless steel retention cable. The steel cable is attached to the valve and the protection cap preventing misplacement and ensuring a quick retrieval during service. |
| Protection cap gasket: | NBR (for brass cap only) |

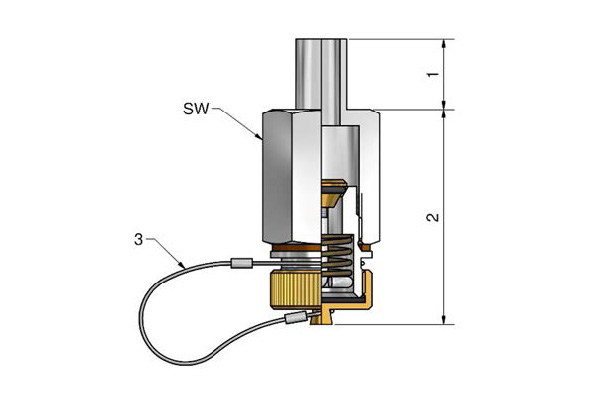

| Legend (see drawing): | |
| 1: As indicated in the stocked size list or finished to requirements | |
| 2: Approx. 64mm | |
| 3: Stainless steel retention cable | |
| Wrench size: 30mm | |
